Pneumatic Solenoid Valves: How They Work

The machines that run our factory are most commonly powered by hidden forces pushing visible thing around. Take the conveyor belt that moves product along its path, or a robotic arm that swings out: The command to make those movements happens most often inside a tiny piece of the control panel. This is where the pneumatic solenoid valve come in, the mechanical part of the digital brain.

It transforms an electric current into a shot of compressed air. Without this piece of technology, today’s factories wouldn’t function nearly so quick or precisely. Valves are at the heart of much of the world’s industrial machinery and understanding their operation makes many of these machine easier to understand.

Understanding How Pneumatic Solenoid Valves Operate

How Pneumatic Solenoid Valves Work

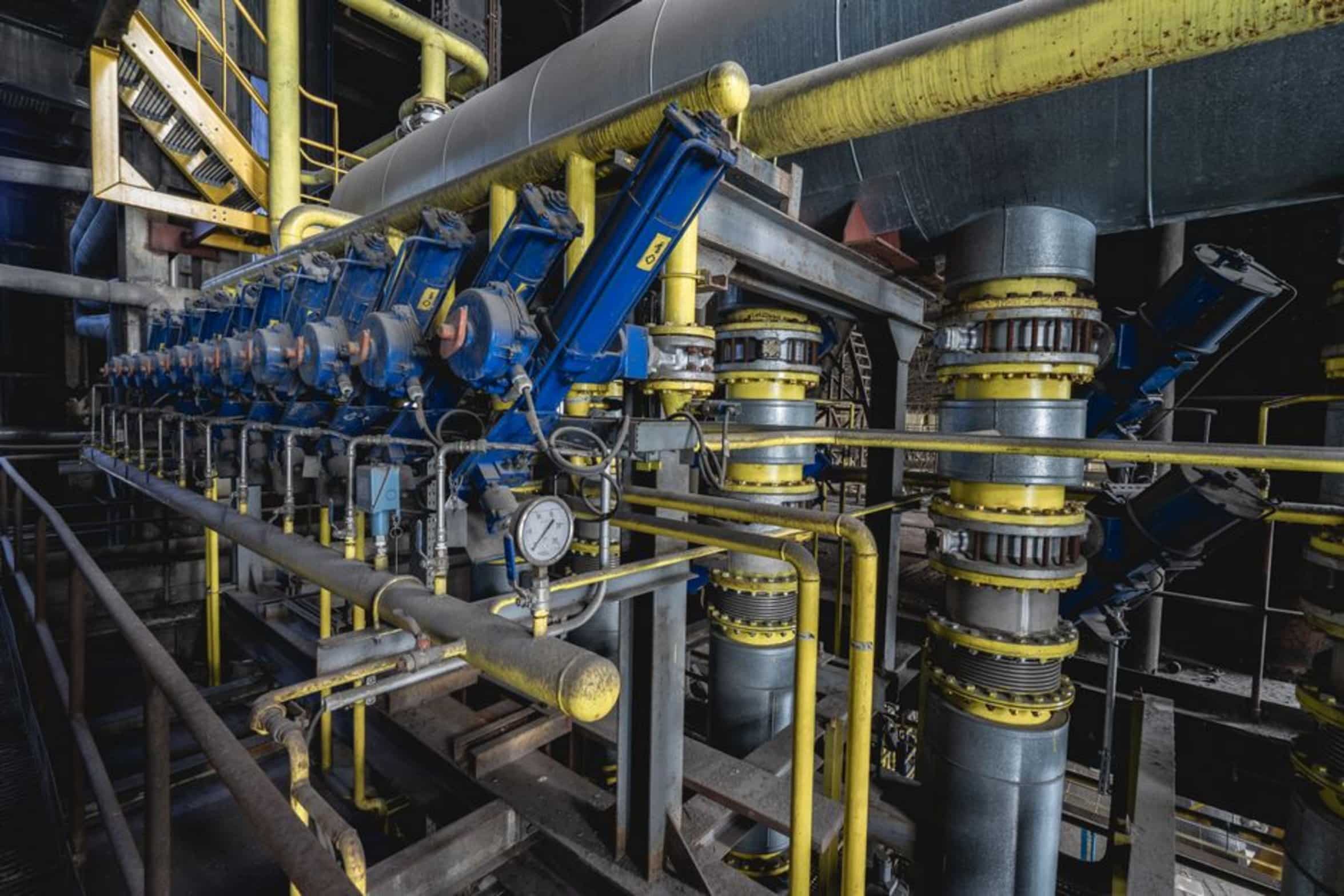

industrial solenoid valve

They’re essentially just an on-off switch, right? Not exactly. It’s a combination of fluid dynamics and electromagnetism, and getting it wrong result in a burnt-out valve or a system that won’t respond.

The more you know about the basics, the better you’ll be able to choose proper hardware for your application; and troubleshoot quick when things go wrong. But at its heart is this: A coil and a plunger. You pass electric current through the coil which generates a magnetic field that attracts a ferromagnetic plunger towards middle of the coil.

That motion controls airflow. The plunger either opens or closes a port to let air flow or stop it. Electrical becomes mechanical directy.

Until you think about what’s going on with this design. The coil creates some amount of magnetic force which has to be strong enough to push past the compressed air (which is exerting force) and spring tension (holding the plunger in place). The more air there is, the less likely the coil are to create enough force to displace the plunger.

That’s why pressure limits is important. Also, you can’t just take a 120 volt valve and replace it with a 24 volt valve and assume it will work like the other one did. In the field you’ll run across two primary valve designs.

Direct Acting vs Pilot Operated Valves

A direct acting valve moves its plunger straight into air pressure. It’s a basic design that’s rugged and good for vacuum service or lower pressure applications. Because it doesn’t go through an intermediate step when activated, it reacts fastly.

But it needs higher electrical power to overcome higher line pressures. For higher pressures, there are pilot operated valves that use a little bit of air coming from the inlet line to assist in pushing the diaphragm or main spool. Then the solenoid must only operates a very small pilot valve that creates a pressure difference to do all the work on the main valve.

Because of this design, they can have much smaller, cooler coils but still get large flows. That’s some fancy physics trickery to save both heat and energy. So how do you decide to go pilot or direct?

Choosing the Right Valve Design

Generally, direct acting is better for lower pressures that need a quick response time. The larger passageway makes it more forgiving to particulates and other matter that may get into your air line. Direct acting is also often a safer bet for applications with long runs.

These valves has small passages that help make them efficient. However, these small passages can also make them easier to plug up. Because they have small orifice passages, clean air is a non-negotiable requirement for these valves.

Installation and Sizing Considerations

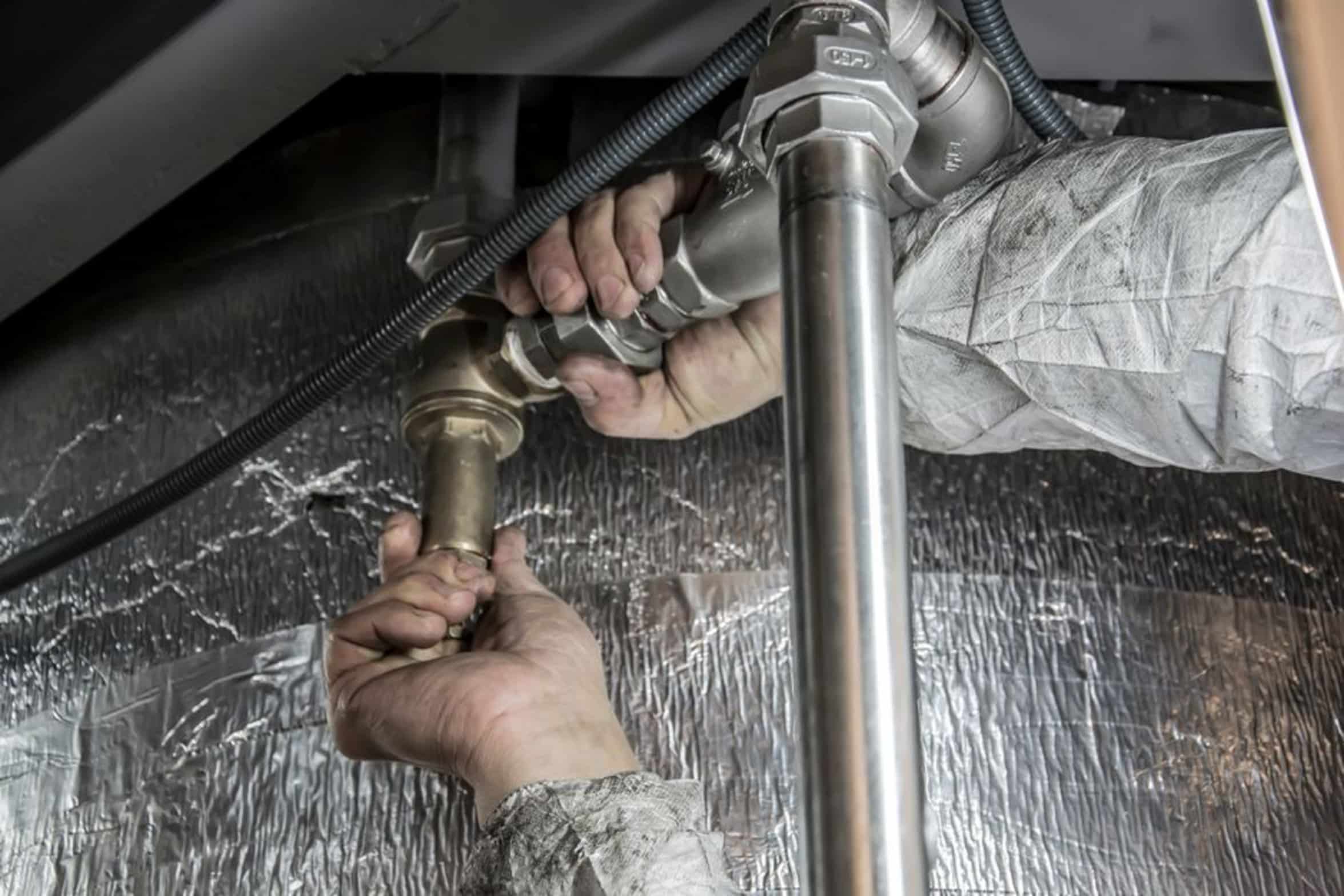

pneumatic tubing connections

The way the systems are connected is part of the picture as well. Most valves attaches with a spool type connector that slides over a manifold. That makes for clean lines and fewer leak points.

Others are screwed directly into tubing. Those are typically more common on smaller setups or if you’re retrofitting an existing one. Valve size (typically listed by the port size such as G1/2 or G1/4) determines the amount of airflow possible thru the valve.

The smaller the valve, the less air flow which limits the speed of any actuator they control. I think a lot of us do that with our units… we don’t maintain it till something fails. And the thing that will fail first is usually the coil heating up too much.

Preventing Valve Failure and Maintenance

When the solenoid is energized, it generate heat. If you leave it on too long, it can overheat and burn out. You should of known what the duty cycle of your coil is.

There are some rated for intermittent and some rated for continuous use. Continuous use of an intermittent coil equals a premature death. Contamination is another problem.

Oil and moisture in the air line will gum up the moving internal components on a valve. Most of these problems can be fixed with a simple air filter regulator lubricator setup that makes sure the air going to the valve is clean, dry and correctly pressurized. This is an inexpensive investment that greatly increases the life of the valve.

It is cheap insurance for expensive equipment. The next step is more intelligent valves. Increasingly these come with communications or even integrated sensors into many of the newer models.

Smart Valves and Predictive Maintenance

Not only does that mean reporting back on condition but also alerting you to failures before they stop the line. That predictive maintenance ability is changing how industrial equipment are managed. No longer do you need to wait until it breaks to realize there was an issue.

In the end, the pneumatic solenoid valve is an example of effective conversion: It converts the silent, clean energy of electricity into the raw power of compressed air’s movement. A small bit of wire and metal makes huge things happen. And finally: when you see an automated system, keep in mind that all those quick motions begins as a small pull of magnetism.
